Solar Permit Design:
PE Stamped Plan Sets Built for AHJ Compliance

A delayed permit costs money — resubmissions mean schedule slippage, carrying costs, and sometimes a lost interconnection queue position. The difference is almost always the engineering behind the plan set.

Barun Corp’s PE stamped plansets satisfy the AHJ, the utility, and the NEC simultaneously — compliant, cost-effective, and ready for building department approval.

What Goes Into a Solar Planset

A code-compliant solar planset includes several distinct engineering deliverables, each with its own technical requirements:

Site plan and rooftop layout

Array placement and equipment locations drawn to scale for AHJ submission.

Structural analysis

Roof load calculations stamped by a licensed structural PE.

Single-line diagrams (SLD) and three-line diagrams

Electrical schematic built to NEC Article 690 requirements.

Load calculations

Service entrance capacity and interconnection limits verified.

Labels, components, and spec sheets

Warning labels and component documentation per the NEC edition adopted by the jurisdiction.

Battery storage integration

Additional scope required for solar plus storage projects.

Residential vs. Commercial

Residential vs. Commercial Solar Permit Design

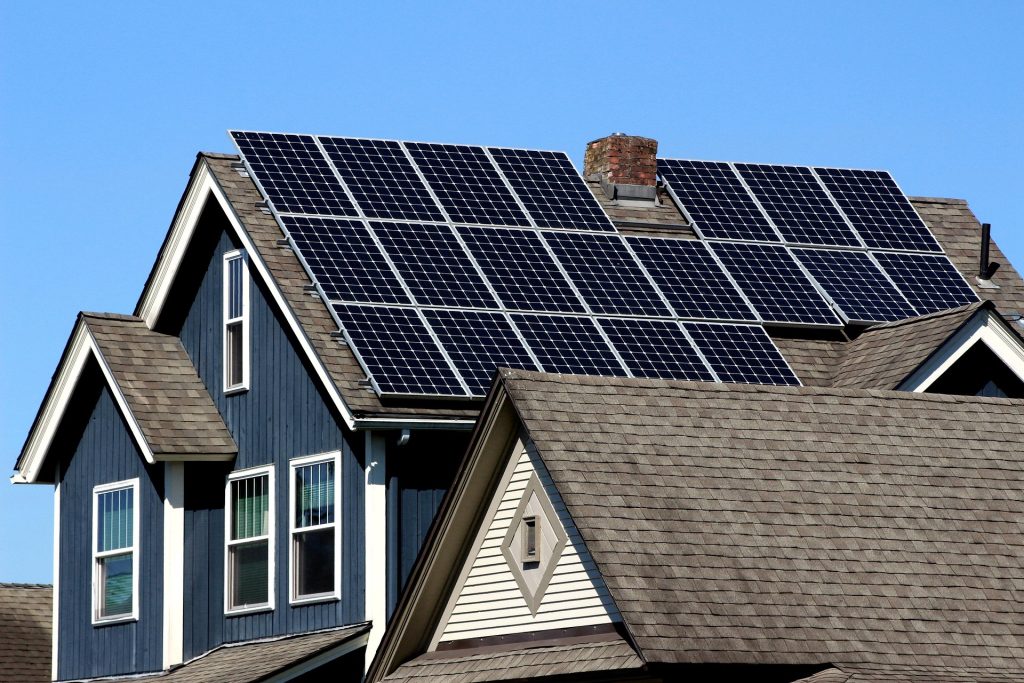

Residential solar

Residential solar permit packages are high volume and process-driven. The structural analysis is typically a roof load letter, the SLD follows a standardized format, and most AHJs work from a checklist. Speed and accuracy matter most. Barun delivers standard residential solar permit packages within 24 hours. Design and engineering packages within 48 hours.

24 hrs

Standard residential solar permit packages

48 hrs

Design and engineering packages

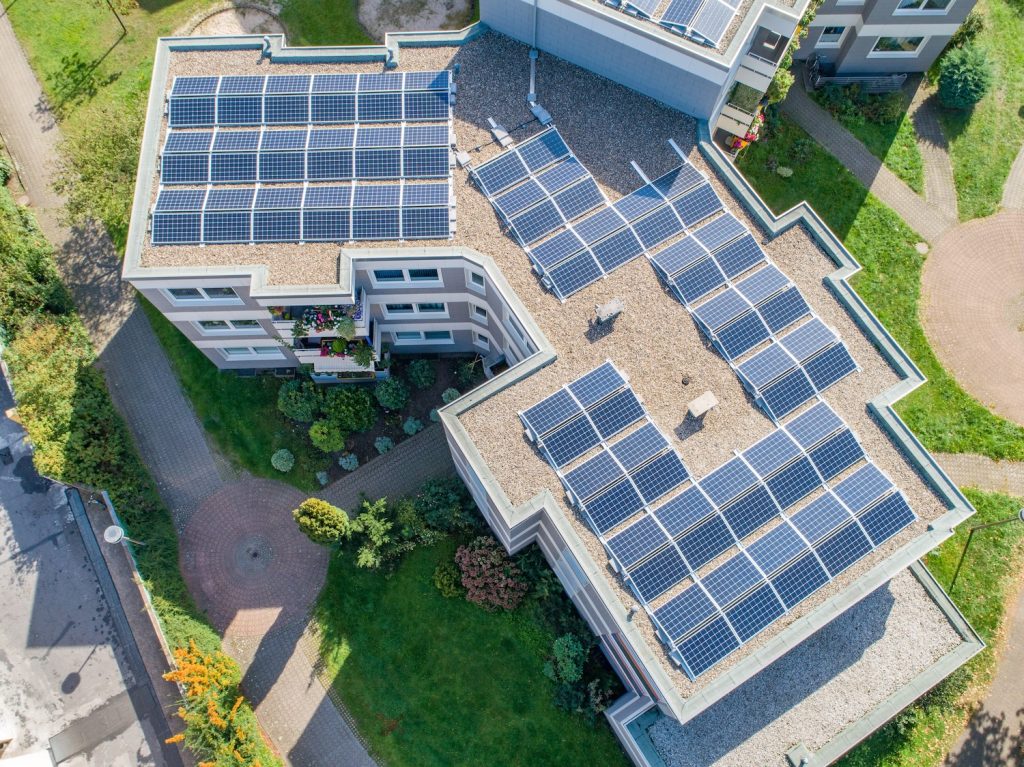

Commercial solar

Commercial solar permit design is a different scope entirely. Systems above 100 kW typically require a full engineering package — stamped structural drawings, plus protection coordination analysis and arc flash documentation where required by the AHJ or utility, and in some cases a medium voltage design deliverable if the solar system interconnects above the service entrance. Multi-tenant buildings, carport structures, and ground-mounted arrays each introduce structural complexity that a residential permit template cannot address.

100 kW+

Full engineering package threshold

Medium voltage design where required

Barun Corp handles both residential and commercial solar across all 50 states with the full in-house structural and electrical engineering services required for complex C&I projects.

Multi-State AHJ Realities

No two AHJs interpret local codes the same way.

California

Enforces Title 24 on top of NEC Article 690.

Miami-Dade

Applies wind load requirements exceeding standard ASCE 7-22 assumptions

Illinois

Projects under CEJA require additional interconnection documentation

New Jersey

NJBPU has specific plan set requirements for TREC-eligible projects

Project Example

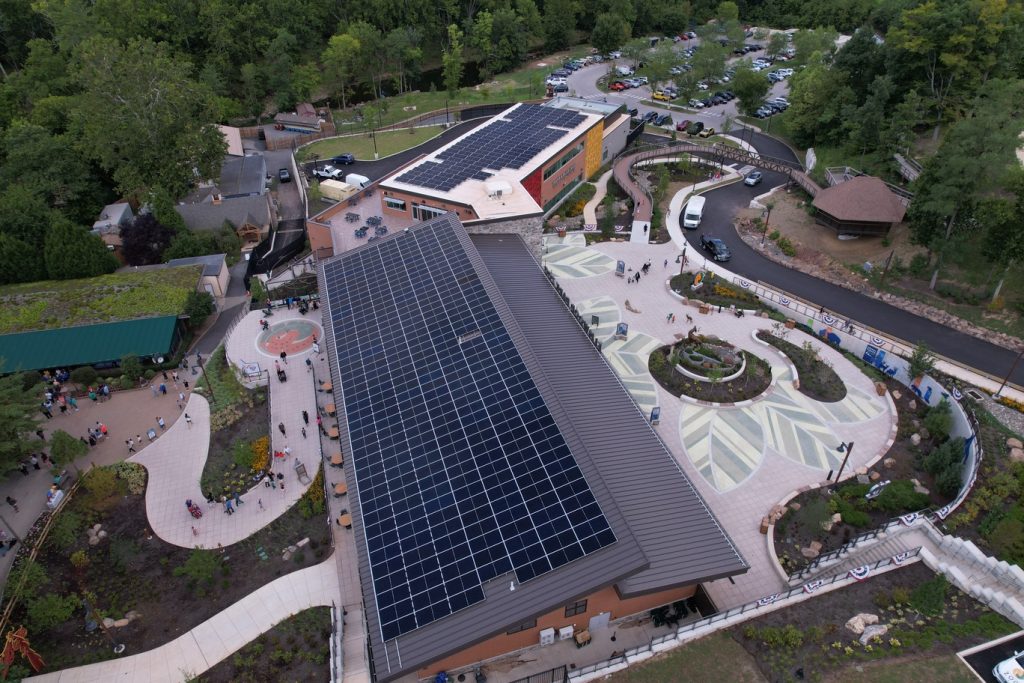

Prince William County, VA

Commercial rooftop project, multiple structural review cycles required:

States licensed

Plus Puerto Rico

20+

Years engineering

Barun Corp provides solar permit design and engineering across all 50 states. We do not use template solar plans. Every planset is engineered to the jurisdiction’s specific code requirements, from Title 24 markets to hurricane-zone wind load standards, because compliance with local building codes is an engineering decision.

How Barun's Solar Permit Design Process Works

Every project begins with a thorough intake process. We collect and verify all project information before design begins: site details, utility information, AHJ requirements, system size, roof or ground-mount configuration, site photos, electrical data, and equipment preferences. A complete intake reduces permit revisions and approval delays by ensuring the engineering design aligns with utility and building department requirements from the start.

PV Design

Full system layout and planset development: module placement, stringing, inverter selection, code-compliant drawings, equipment schedules, and permit-ready documentation. This stage includes single-line diagrams, load calculations, overcurrent protection sizing, and compliance with the NEC edition adopted by the jurisdiction — engineered specifically for the project’s AHJ and utility, not adapted from a generic template.

QA/QC

Before engineering review or AHJ submission, every planset undergoes a full accuracy and compliance check. Every dimension, code reference, electrical detail, and label is cross-verified across the entire set — catching the small inconsistencies that trigger revisions and resubmittals before they ever reach the building department.

Structural & Electrical Review

Where in scope, licensed structural and electrical PEs perform calculations, review the design, and issue PE sealed Structural and Electrical Engineering. Known AHJ interpretation issues are flagged and resolved proactively.

Delivery

Permit-ready plansets are delivered in the exact format the AHJ and utility require. Standard residential designs: 24 hours. Full design and engineering scope: 48 hours. Commercial project timelines are confirmed at kickoff, based on system complexity.

Get Your Solar Permit Design Started

If your projects are coming back with corrections, your plansets aren’t engineered — they’re generated. Barun Corp delivers PE-sealed solar plansets built to satisfy AHJ requirements, hold project timelines, and stand up to the specific code interpretations of your jurisdiction.
